Bathroom Deoderizer Control

HOME
It's that stinky box you see mounted on the wall in public washrooms.

This is the type that has a little DC motor fan positioned above a small container containing a deoderant liquid or jelly, and runs off a D cell. The photocell turns off the fan when it gets dark. The LED flashes if the battery is good.

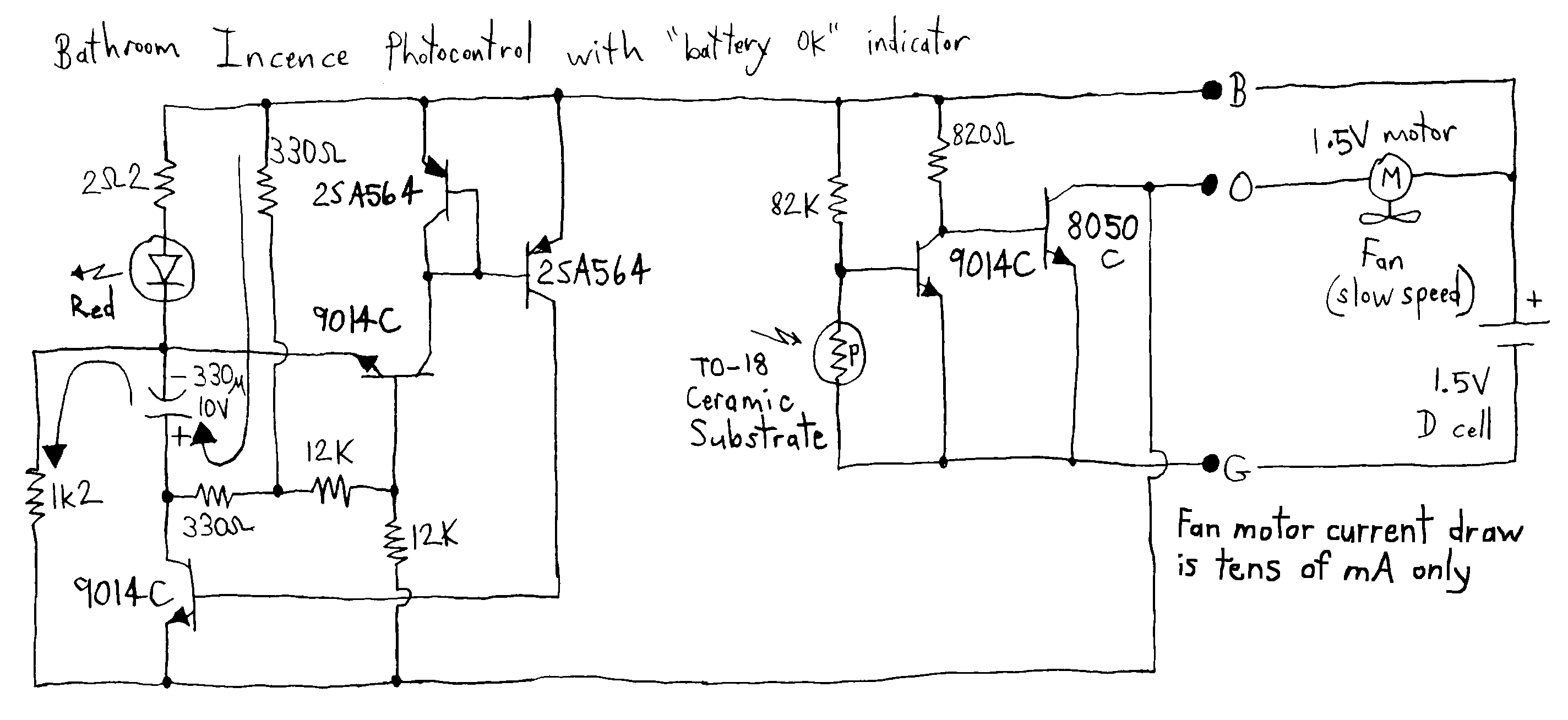

Circuit Diagram aka Schematic reverse engineered from circuit board

Safety, accuracy and completeness of information provided herein is not guaranteed,
so be inspired by it but do not use it as a basis for experimentation or other actions.
