Unusual Radar Detector

HOME
This unique anchient design uses a chopper amplifier.

The microwave diodes are chopper-gated by a multivibrator so the RF signal level can be detected by an audio frequency amplifier.

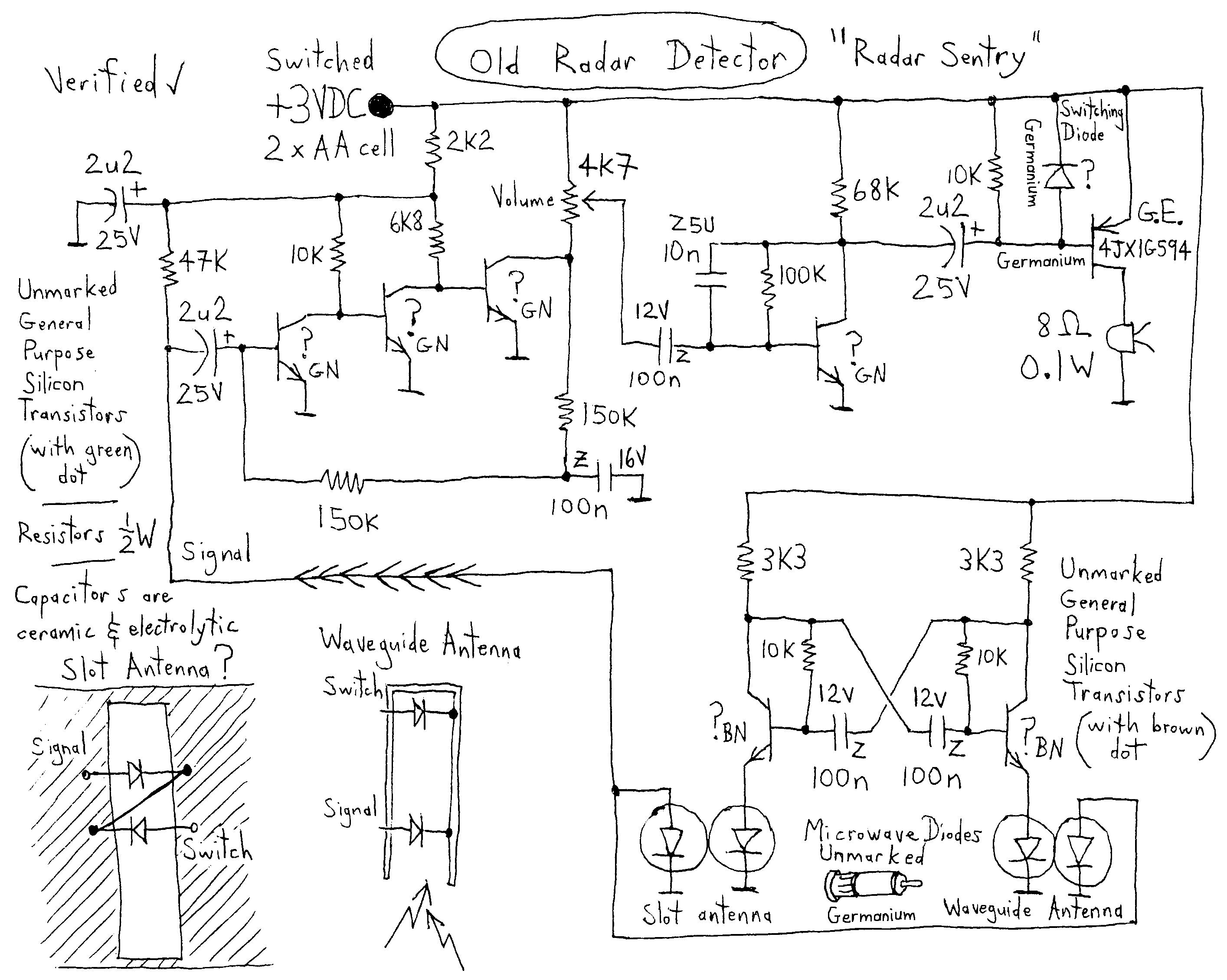

Circuit Diagram aka Schematic reverse engineered from circuit board

Below is a picture of the antenna:


Safety, accuracy and completeness of information provided herein is not guaranteed,
so be inspired by it but do not use it as a basis for experimentation or other actions.
