Wall Clock Governor Driver

HOME
These were common before the advent of quartz controlled stepping motor clocks.

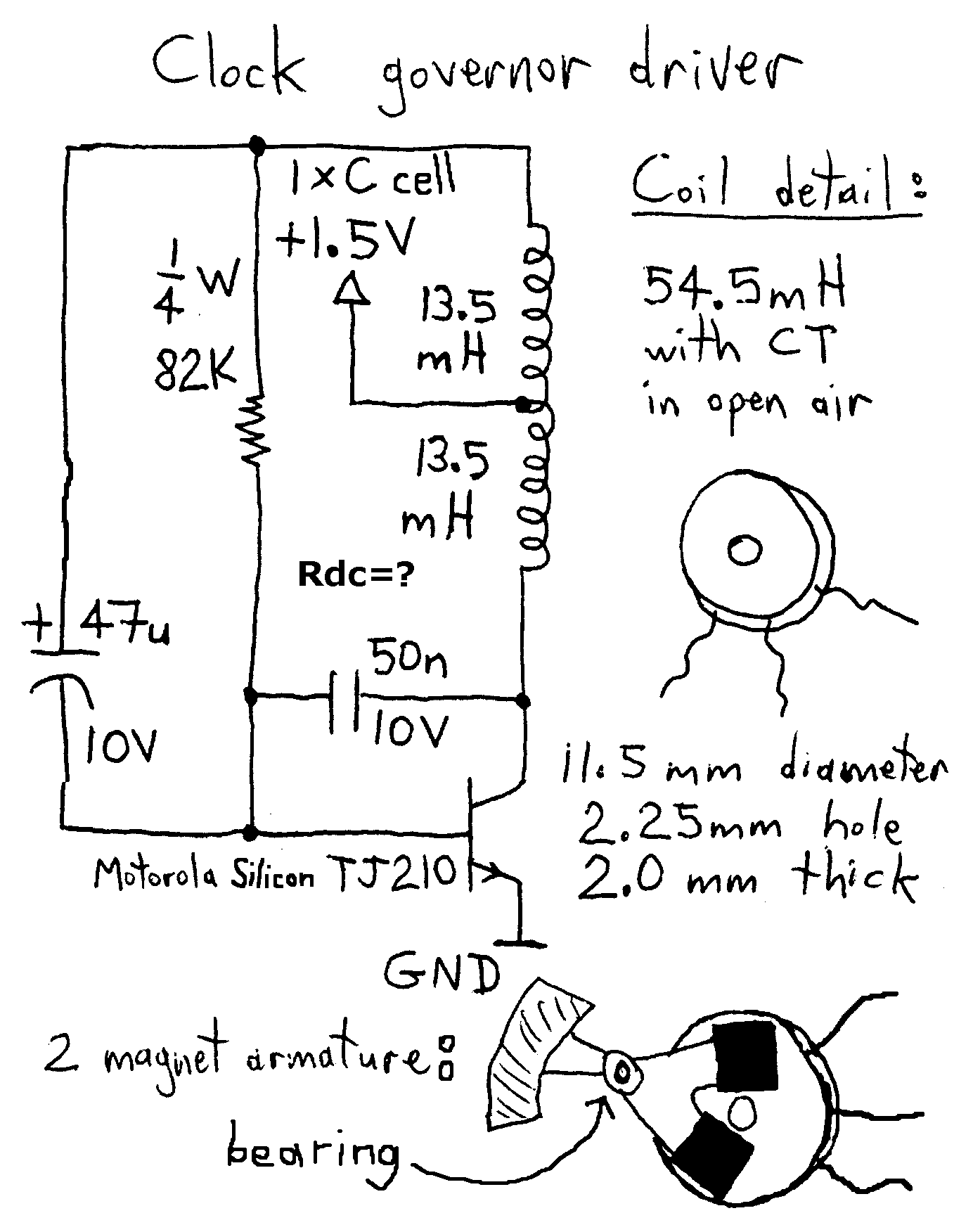

Here is a reverse engineered diagram of this very typical circuit:

Circuit Diagram aka Schematic reverse engineered from circuit board
