Fires colored Christmas type light bulbs to music or even quiet speech.

This circuit works FANTASTICALLY well. Notice how it will fire even in complete silence, thereby providing a sort of automatic gain control.

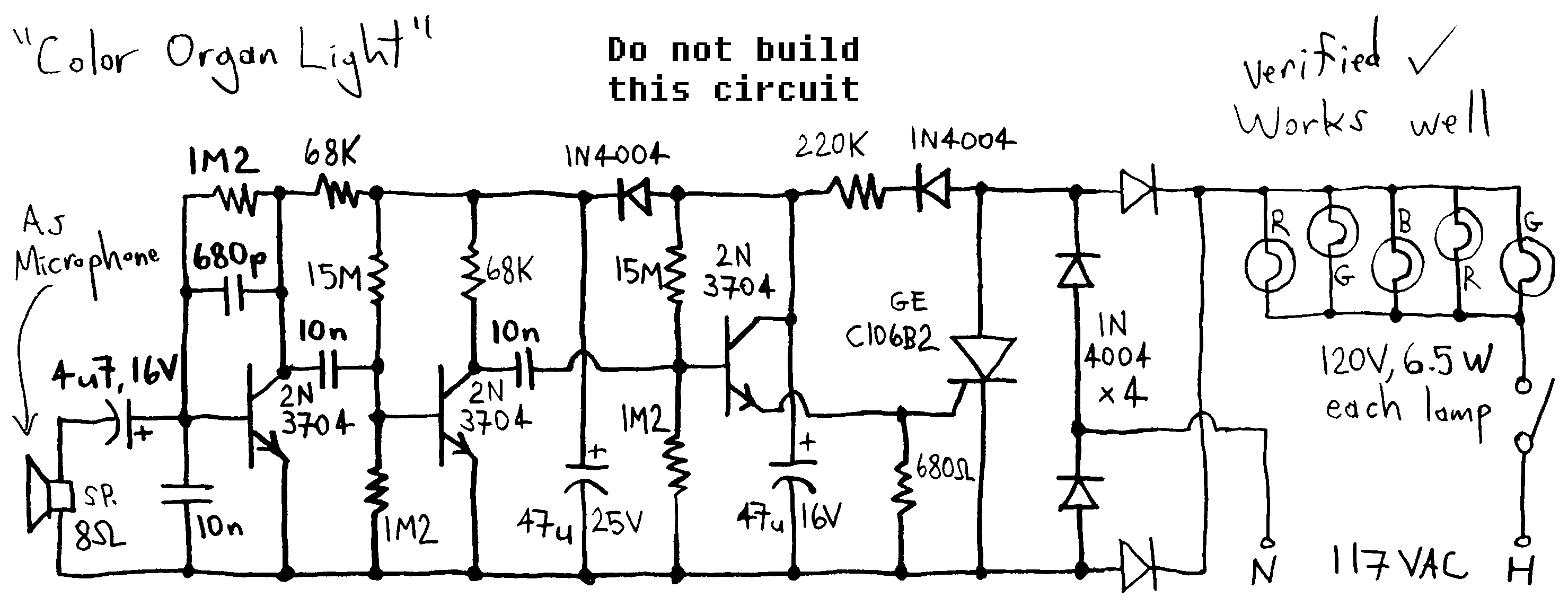

Circuit Diagram aka Schematic reverse engineered from circuit board

Safety, accuracy and completeness of information provided herein is not guaranteed,
so be inspired by it but do not use it as a basis for experimentation or other actions.
