Small DC to DC Converter Modules

HOME
  Used to generate supplememtary voltages on circuit boards.

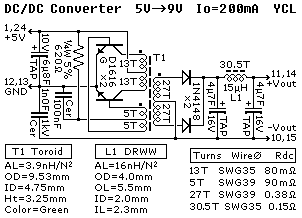

Reverse engineered circuit diagram of two different DC to DC converters of the type used on old 10bT LAN cards.

Circuit Diagram aka Schematic reverse engineered from circuit board

They are both fairly identical in operation and specification. In fact they are pin compatible and interchangable.

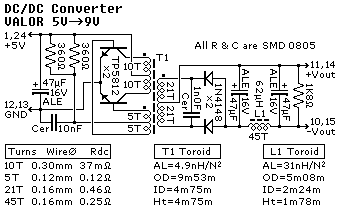

Circuit Diagram aka Schematic reverse engineered from circuit board

Here is a picture of the original modules next to the magnetic cores they contain, depotted under pressure in a cappucchino machine.

Picture of the modules and the magnetic cores inside

Safety, accuracy and completeness of information provided herein is not guaranteed,
so be inspired by it but do not use it as a basis for experimentation or other actions.
