Delayed Off Light Switch

HOME
Rated for use with incadescent loads.

This is an unusual design in that it uses plain metal gate CMOS logic instead of the usual PIC or a custom chip. The 22uF capacitor charges up during one half of the ac cycle, and supplies trigger current to the triac on both halves.

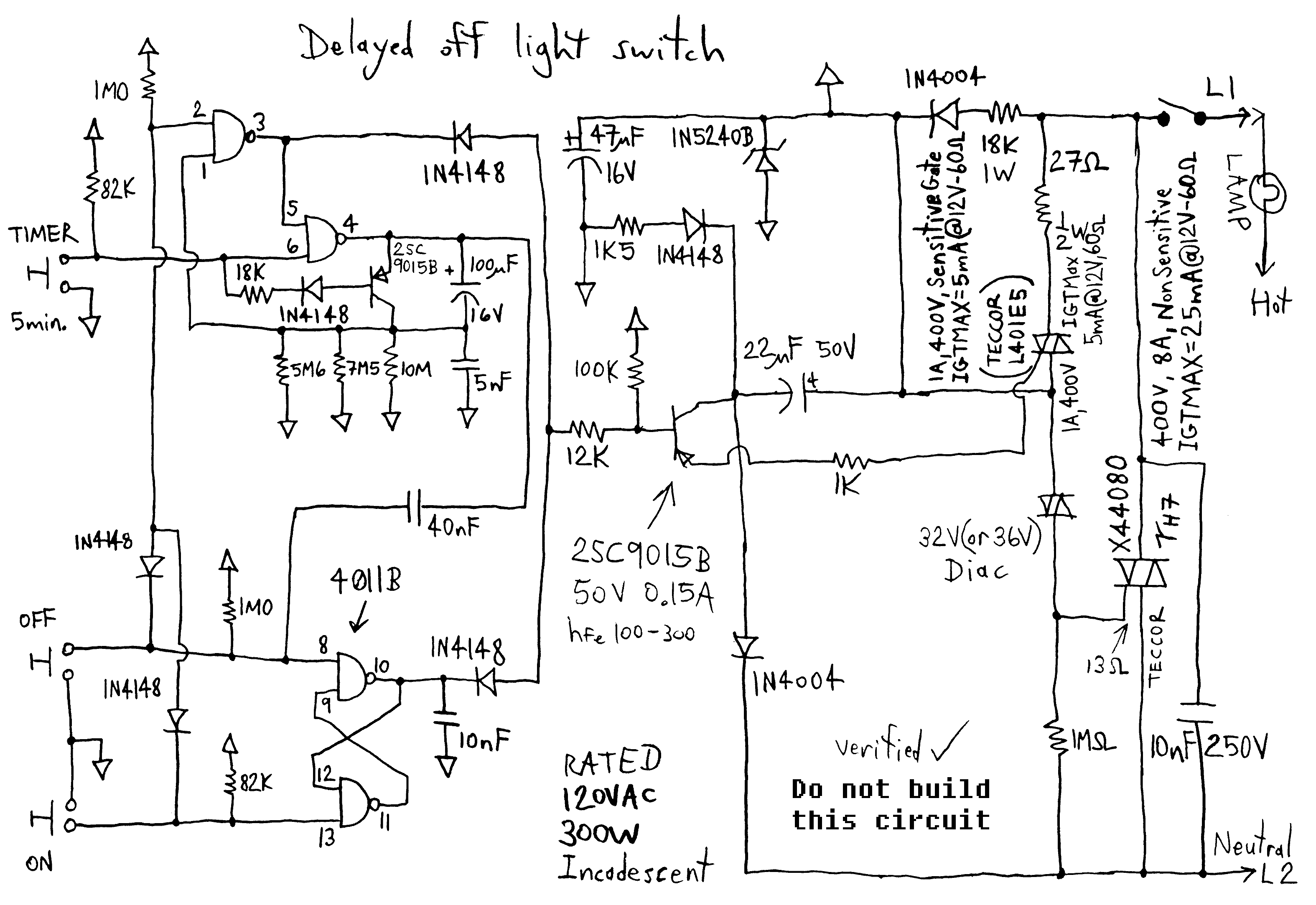

Circuit Diagram aka Schematic reverse engineered from circuit board

Safety, accuracy and completeness of information provided herein is not guaranteed,
so be inspired by it but do not use it as a basis for experimentation or other actions.
