Tape Head Demagnetizer Cassette

HOME
Contains a battery powerd circuit.

This model charges up a capacitor to a pre-determined voltage and then dumps it into a demagnetizer oscillator using an SCR. The LED lights when finished:

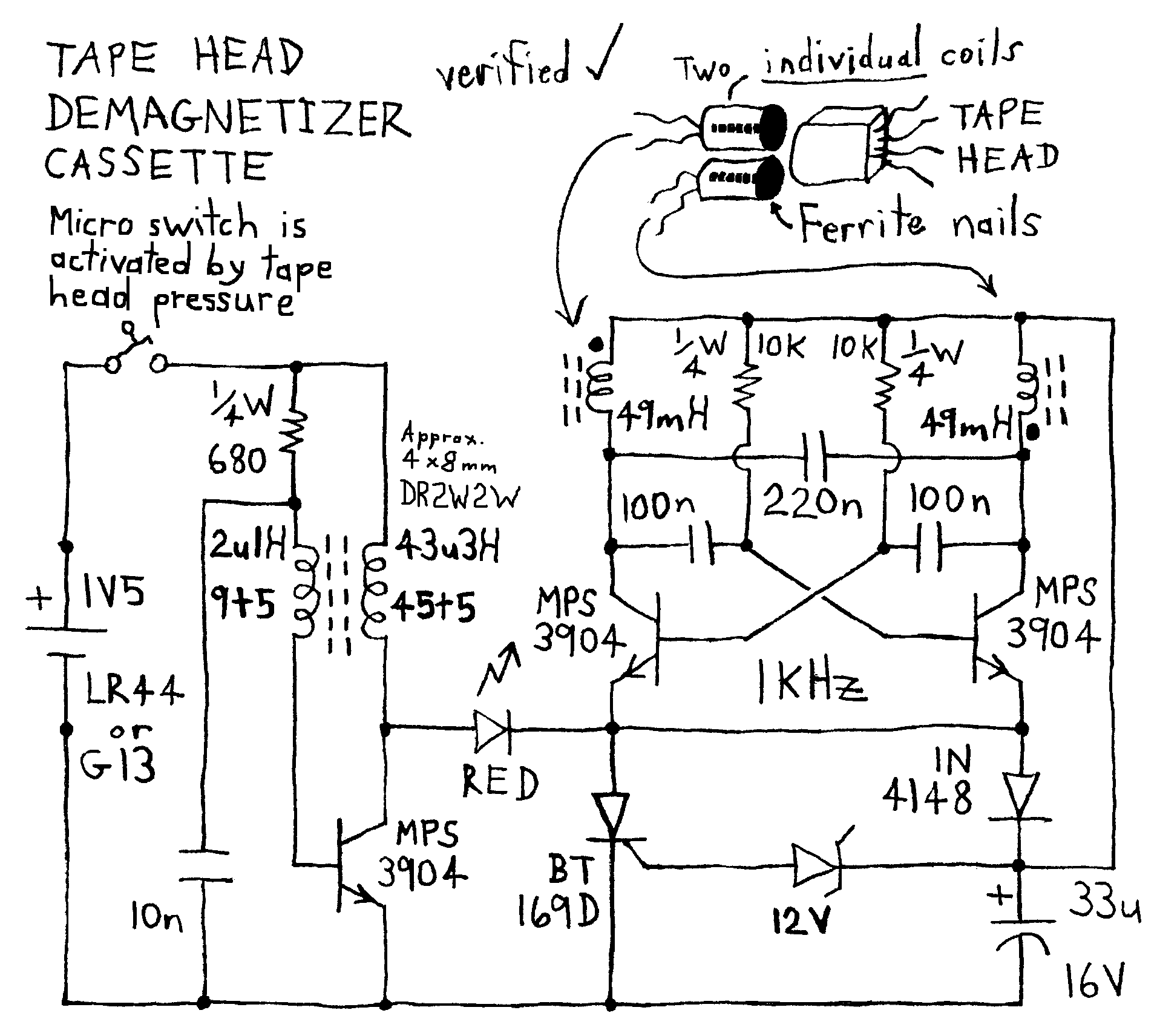

Circuit Diagram aka Schematic reverse engineered from circuit board

Power to the circuit is activated by a microswitch when the tape head presses on the demagnetizer coils:
