Deoderizer Fan Timer

A battery operated fan blows air accross a stinky pad.

For use in a bathroom or car. I've seen similar circuits used in plastic pot-pourri containers.

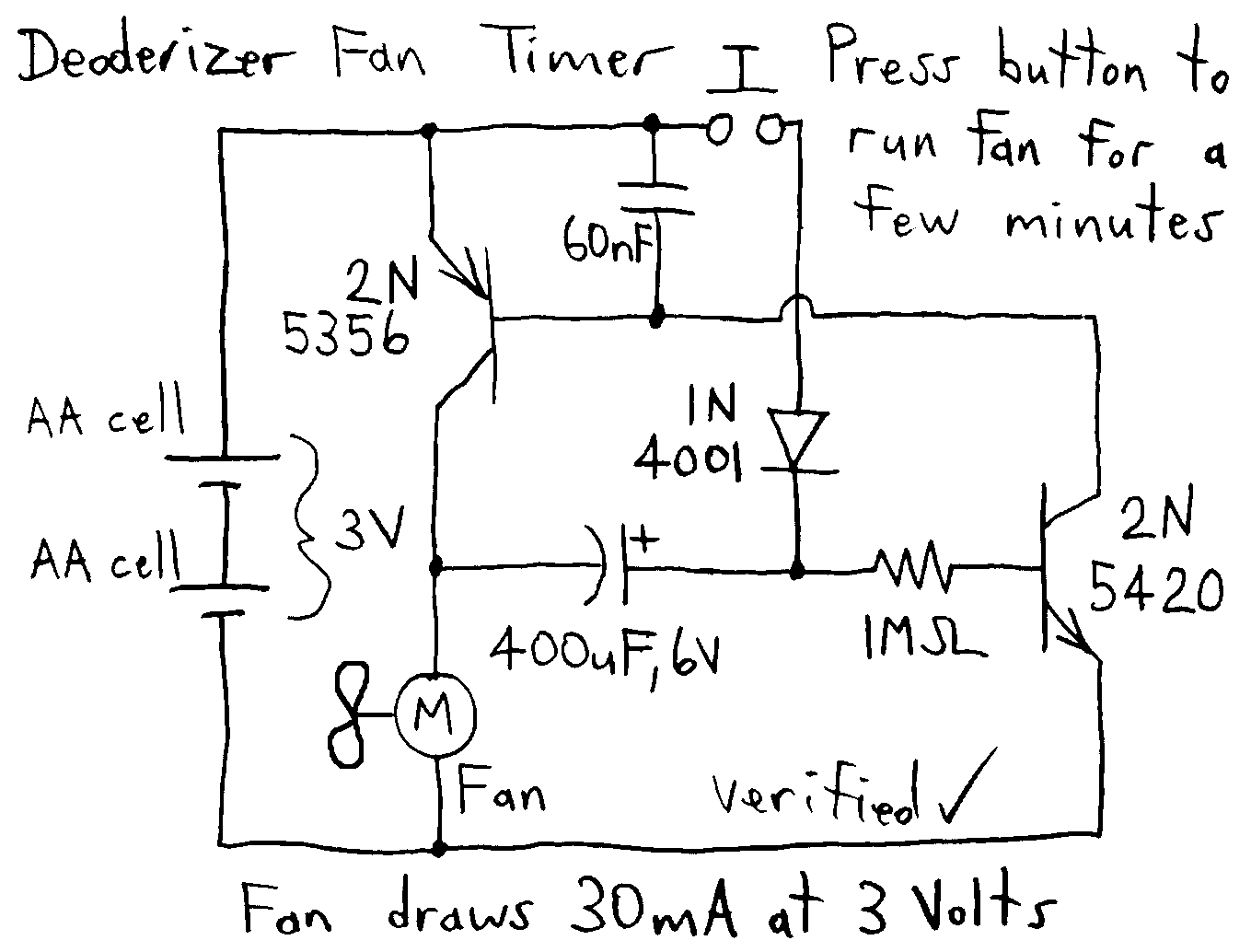

Circuit Diagram aka Schematic reverse engineered from circuit board
