Digital Timer Light Switch

HOME
Yup it goes in place of a light switch.

Typical circuit representative of those used in most light switch type digital timers. The timer module is normally a PIC or custom chip, and it syncs to the AC line so that a trigger pulse can be supplied at the right moment.

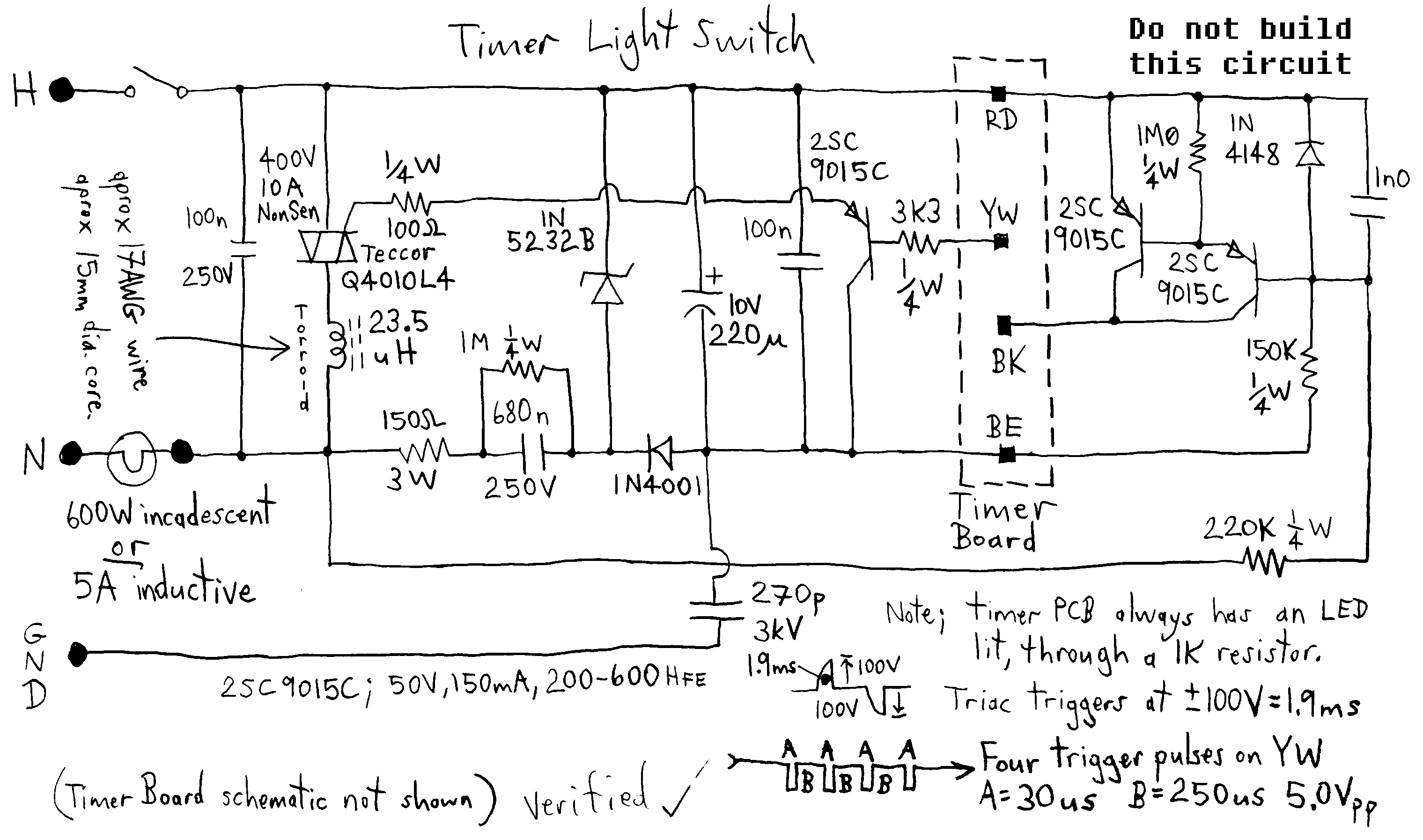

Circuit Diagram aka Schematic reverse engineered from circuit board

Safety, accuracy and completeness of information provided herein is not guaranteed,
so be inspired by it but do not use it as a basis for experimentation or other actions.
