Dynamic Microphone Preamp

HOME
These are often found inside old 2way radio microphones.

Notice how the transistor bias current flows through the microphone. A similar circuit can be used with an 8 ohm speaker but in that case you would put it in place of the emitter resistor. This circuit works as a carbon microphone replacement.

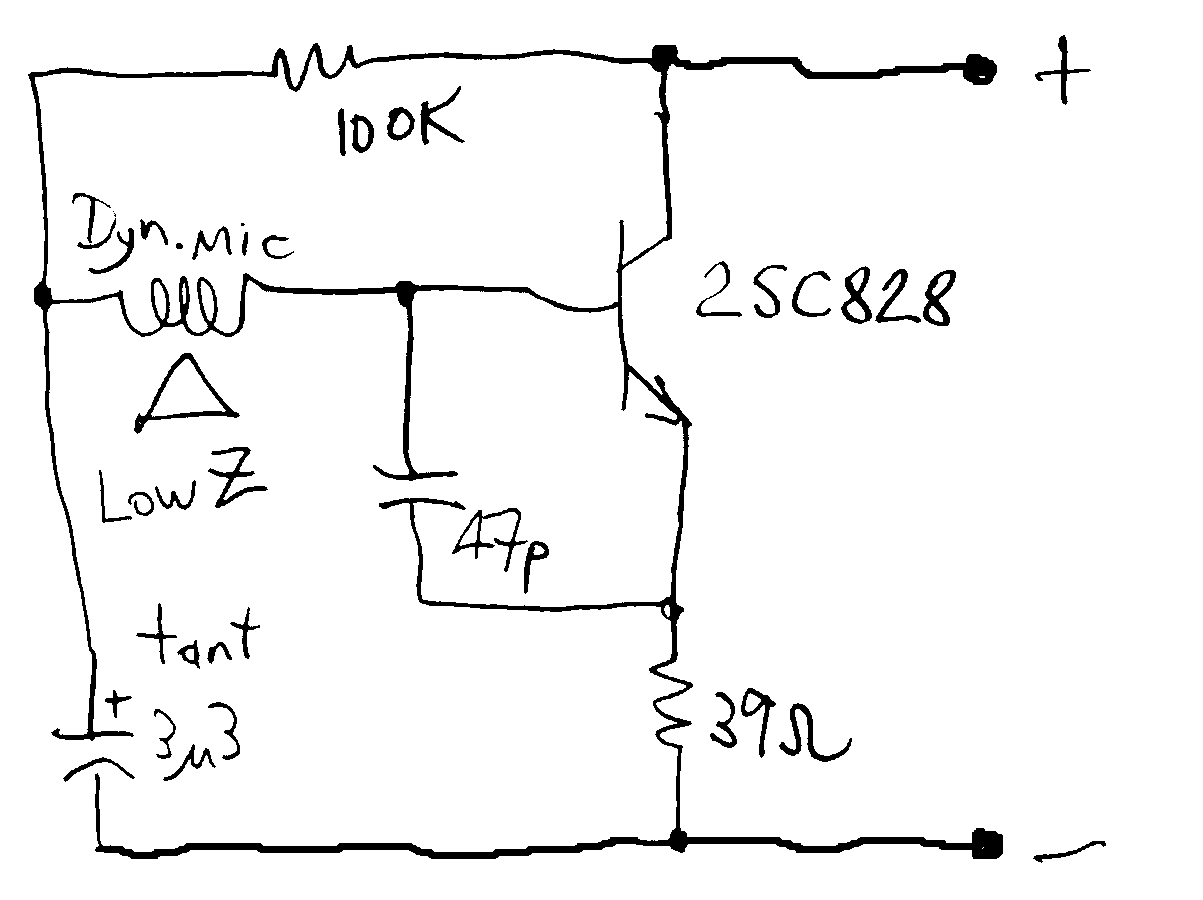

Circuit Diagram aka Schematic reverse engineered from circuit board
