Flashing Flashlight

HOME
Meant for use as an emergency flashlight for your glove compartment.

Pretty nice design for a cheap consumer grade flashlight. The power switch was not exactly as shown since there was an option to have the lamp on solid.

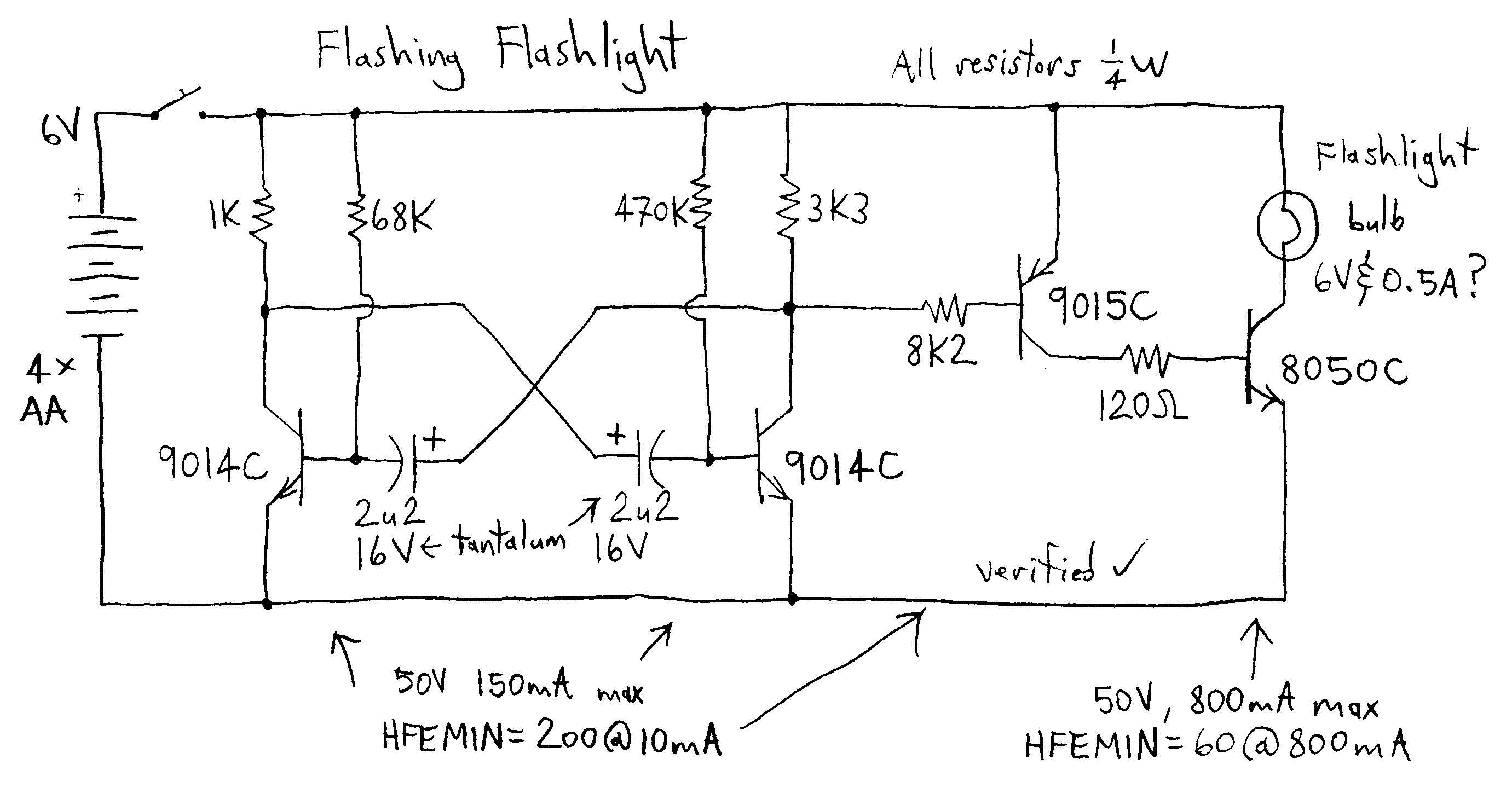

Circuit Diagram aka Schematic reverse engineered from circuit board
