Hand Clap Lamp or Appliance Control

HOME
Clap once for ON and twice for OFF I think.

What a way to drive a triac! This was a mass-produced consumer item so I guess it must be OK though.

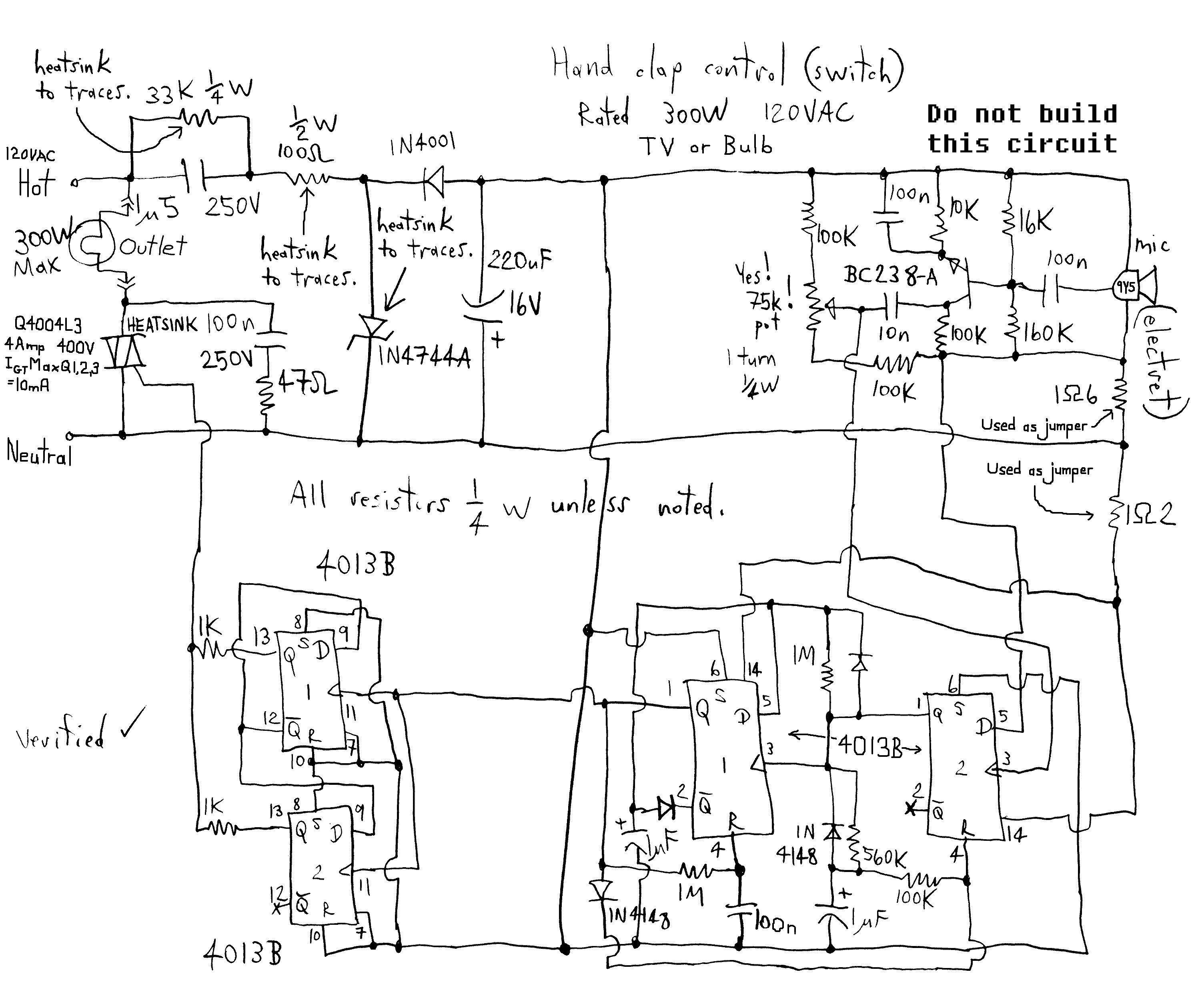

Circuit Diagram aka Schematic reverse engineered from circuit board
