Infrared Heart Pulse Monitor

HOME
Senses heart pulse by means of an infrared earlobe clip

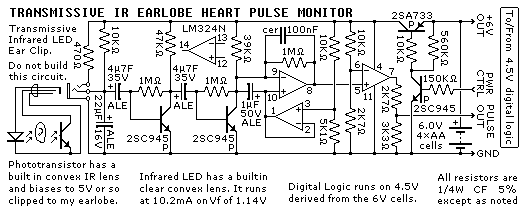

Reverse engineered circuit diagram of heart pulse sensor circuit board out of a treadmill. Notice that the output is level shifted for use by CMOS logic running on 4.5V regulated down from the 6V battery. The CMOS logic also controlls the power to the analog circuitry and infrared LED.

Circuit Diagram aka Schematic reverse engineered from circuit board

Here is a picture of the earclip which clips to your earlobe. Infrared light shines through your earlobe and excites the phototransistor.

Supplementary Illustration or Photograph or other Graphic

Safety, accuracy and completeness of information provided herein is not guaranteed,
so be inspired by it but do not use it as a basis for experimentation or other actions.
