120VAC Lamp Dimmer

HOME
Manufacturer did not bother to design in the usual choke.

This must generate an awfull lot of RFI without a choke! The house wiring supplies the di/dt limiting. This is a CHEAP design which exhibits hysterisys at dim settings. Not everything made and sold to the public is top notch.

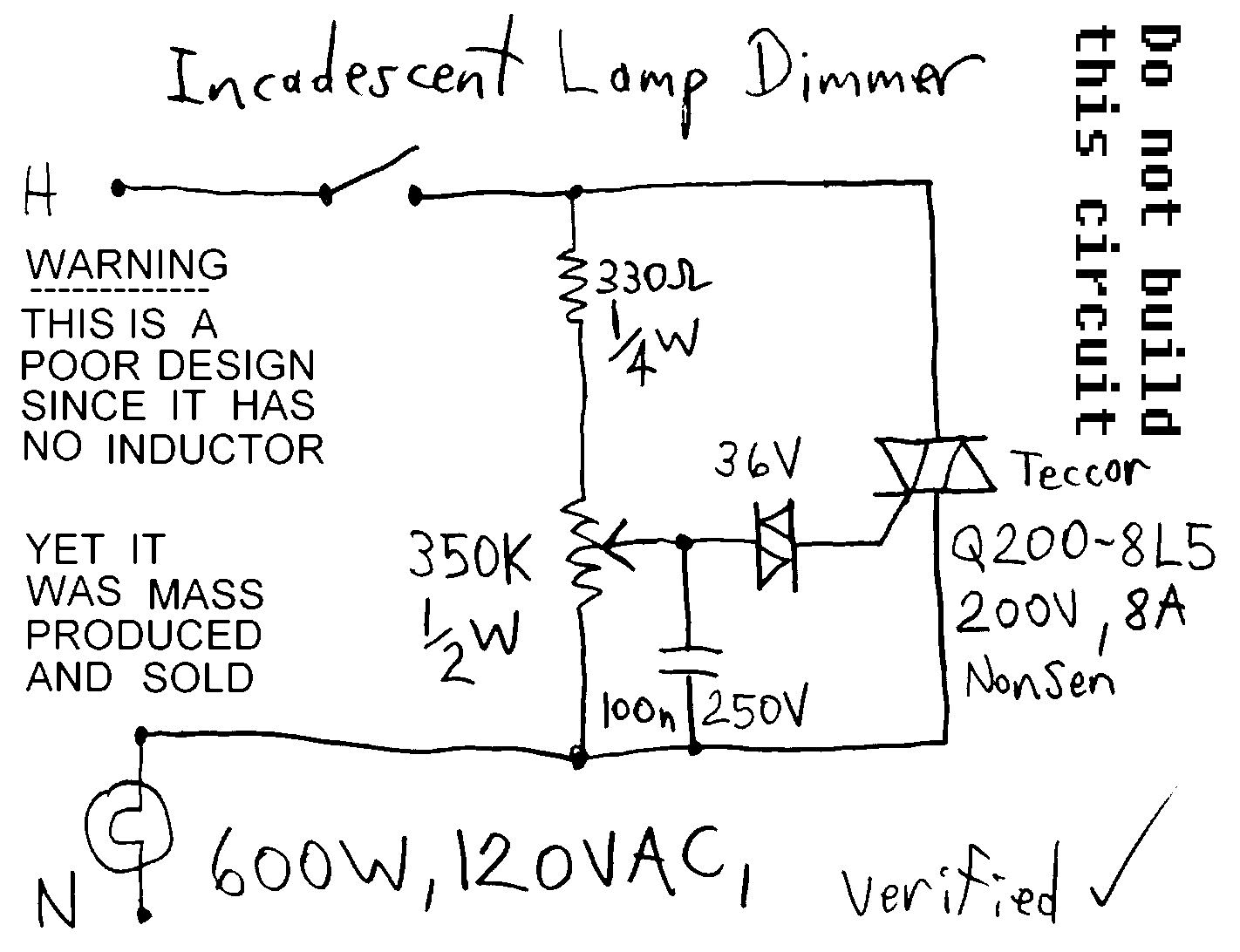

Circuit Diagram aka Schematic reverse engineered from circuit board

Safety, accuracy and completeness of information provided herein is not guaranteed,
so be inspired by it but do not use it as a basis for experimentation or other actions.
