LED boost power supply

HOME
Single AA cell powers two LEDs at constant current.

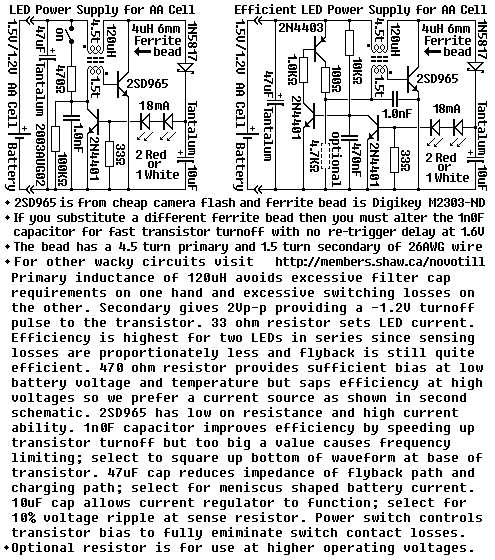

AA cell powers two LEDs at constant current

Efficiency can be increased by using a germanium transistor at the 33 ohm current sense resistor, and by using a proper torroid core in place of the crappy ferrite bead.

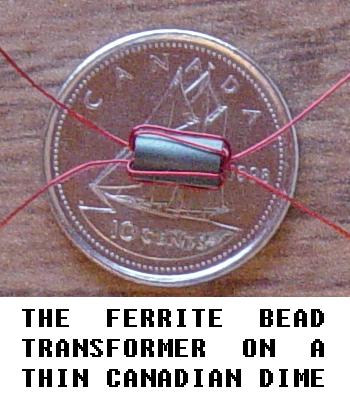

The tiny ferrite bead transformer is easy to make
