These handheld piezo screamers are also known as rape alarms. They are a very loud siren.

This one is particularly loud even though it runs on only two AA batteries. It uses a push-pull transformer output. This unit was manufactured with the 10K resistor at pin 4 instead of pin 3 due to a PCB layout error:

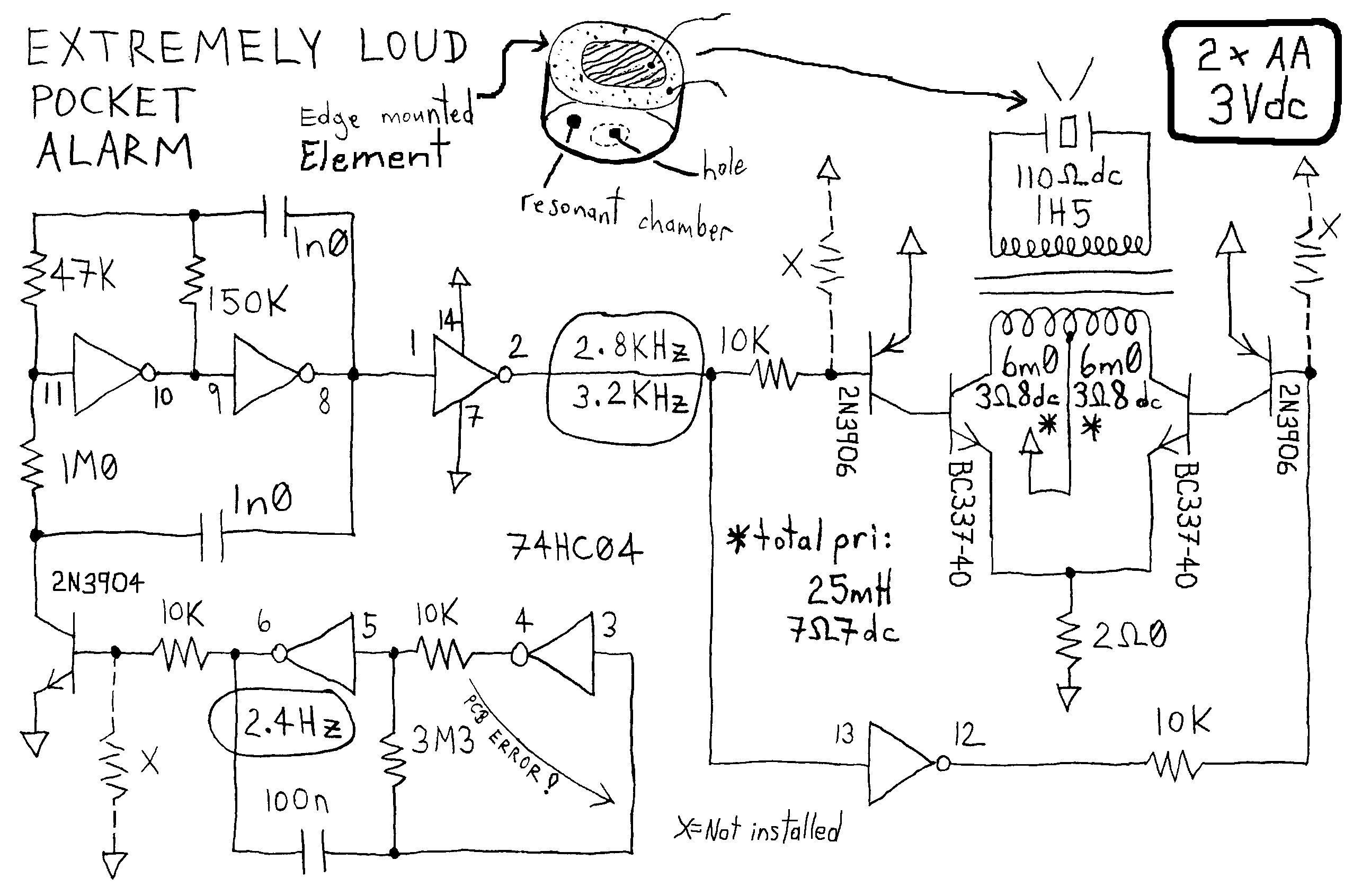

Circuit Diagram aka Schematic reverse engineered from circuit board

The transformer is very small:

Transformer
