Photo Flashes for 1.5V

HOME
These flashes all run from a single AA battery.

This model is very simple and charges as long as you hold the pushbutton:

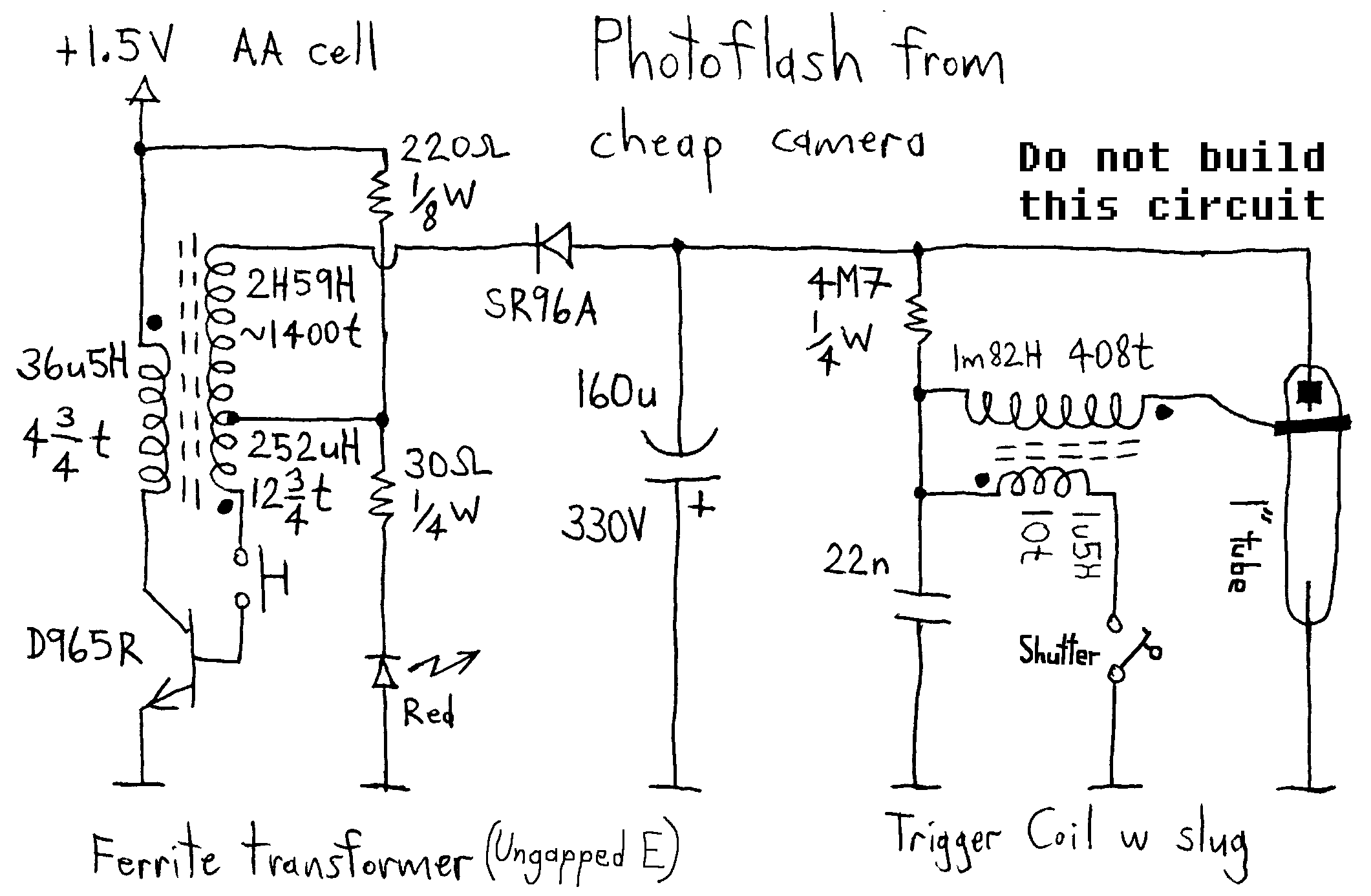

Circuit Diagram aka Schematic reverse engineered from circuit board

This one charges with a single button press:

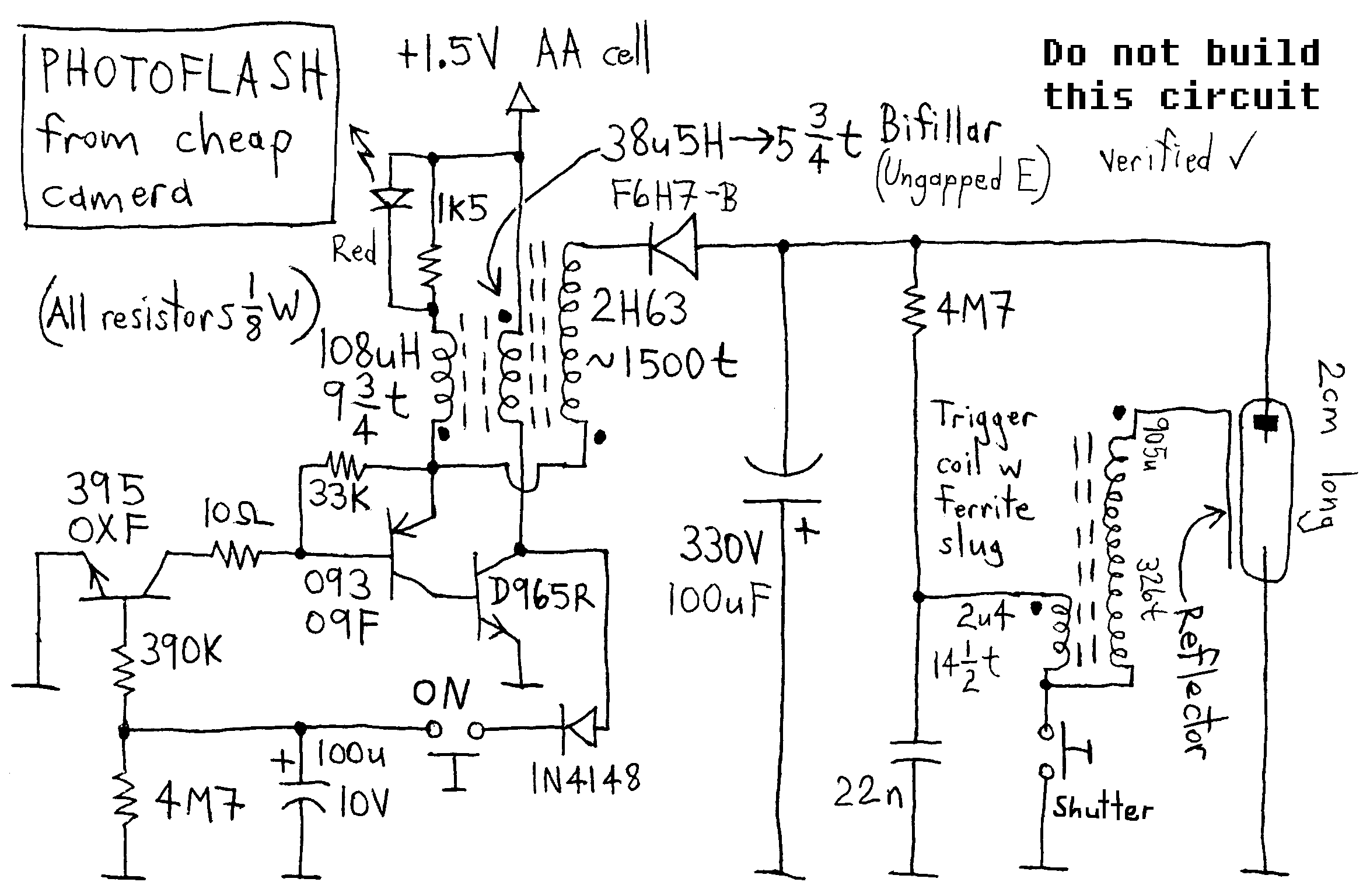

Circuit Diagram aka Schematic reverse engineered from circuit board
