Transmitter and Charger circuit - 2 x AA cell - 27MHz and 49MHz.

The transmitter runs on only 3V whereas most others run on more voltage. This dirt cheap item uses non-adjustable inductors so it is not possible to tweak for higher output. The common TX2B chip is manufactured by HIGHLAND (SHENZHEN) ELECTRONICS CO LTD and by REALTEK SEMICONDUCTOR CORP and others. Datasheets are available on the web but I don't remember where now. Here is the circuit at 27 and 49 MHz:

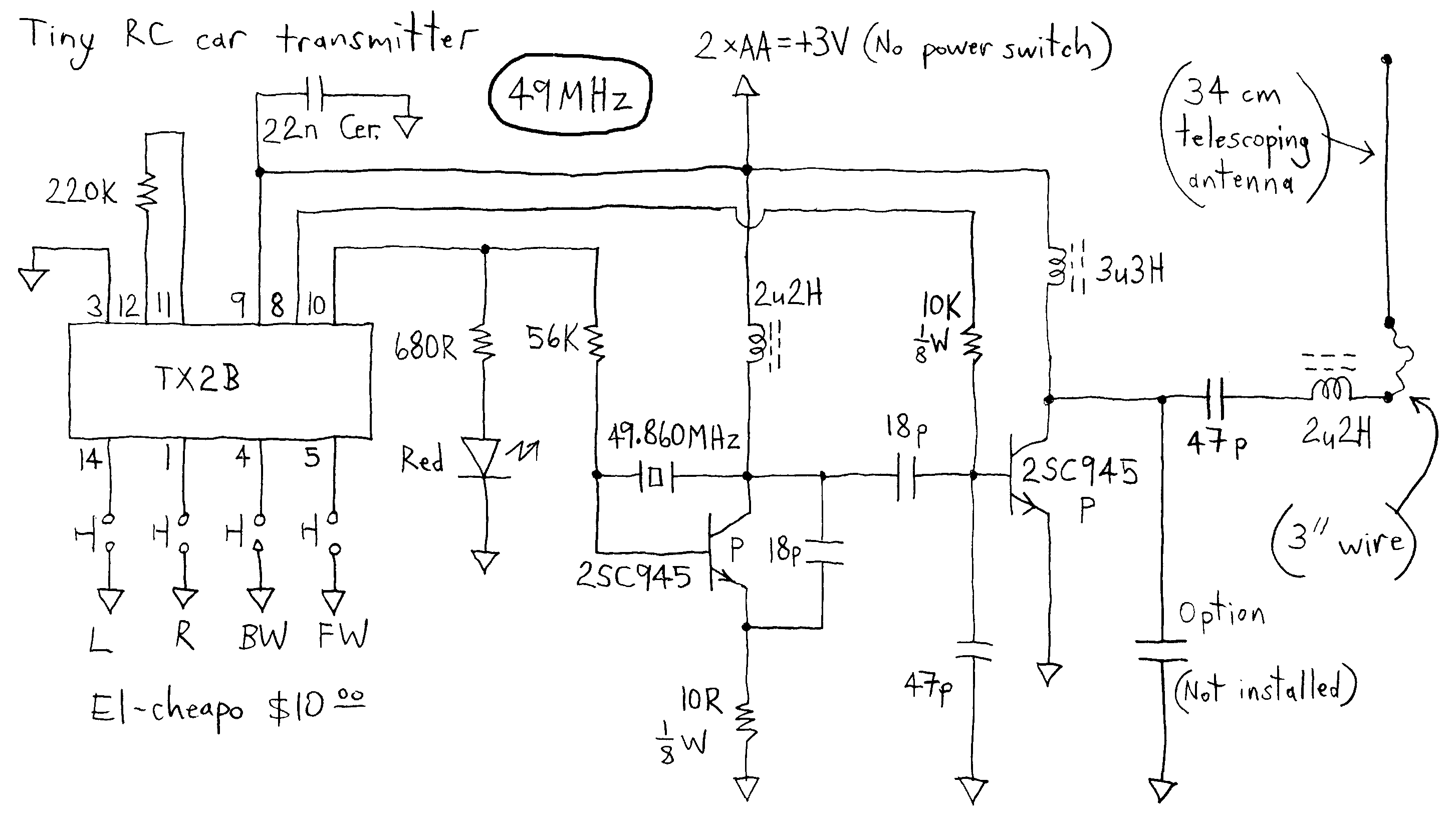

Circuit Diagram aka Schematic reverse engineered from circuit board
Circuit Diagram aka Schematic reverse engineered from circuit board

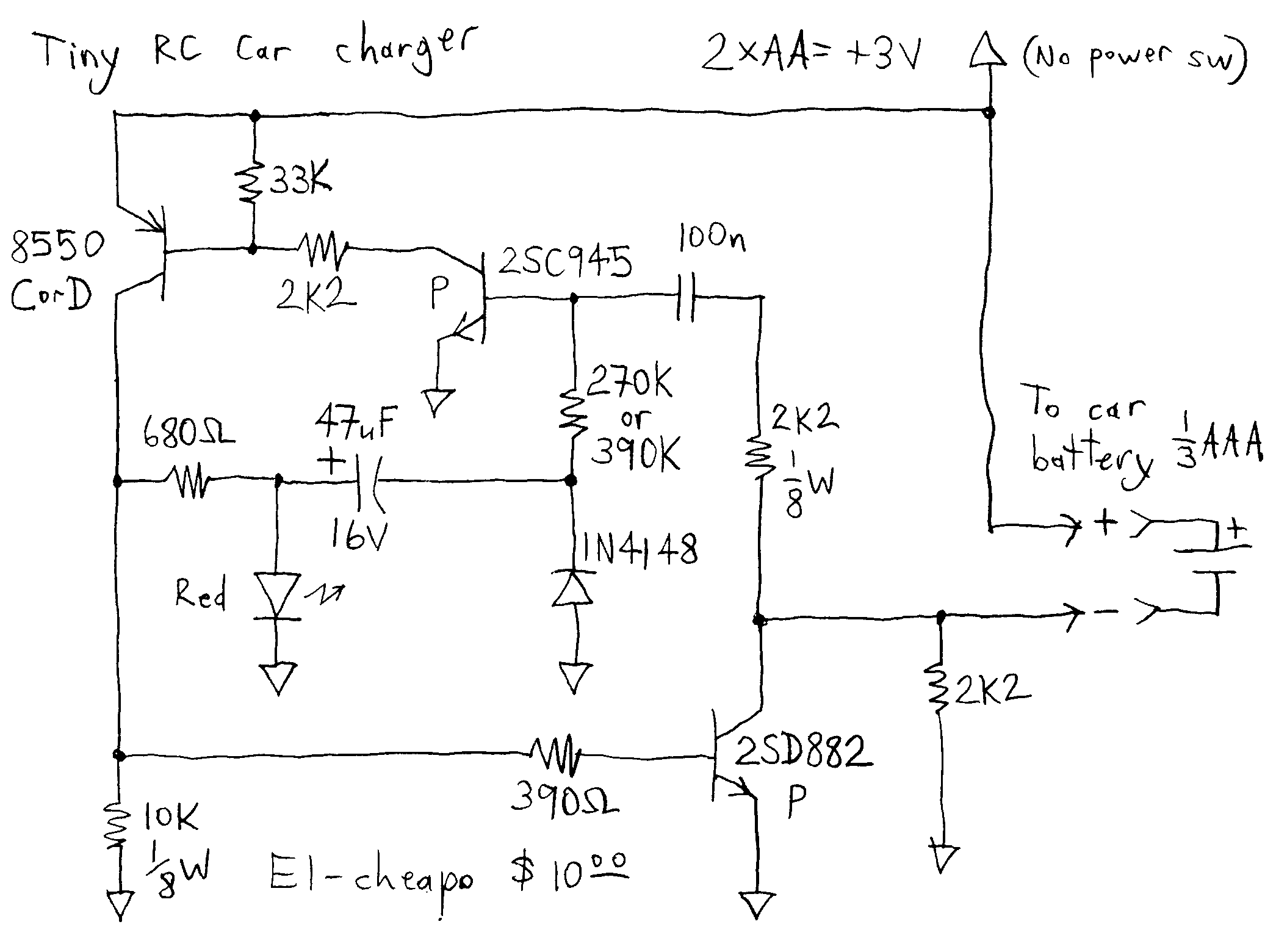

The charger provides a timed charge to the single NiCd cell with simple VCEsat based current limiting:

Charger for Tiny RC Car

I did not draw out the schematic for the receiver because it is full of teeny nameless surface mount components. Compaitble receiver schematics are available as application notes from the various manufacturers of the TX2B chip and from various patent offices worldwide.


Safety, accuracy and completeness of information provided herein is not guaranteed,
so be inspired by it but do not use it as a basis for experimentation or other actions.
